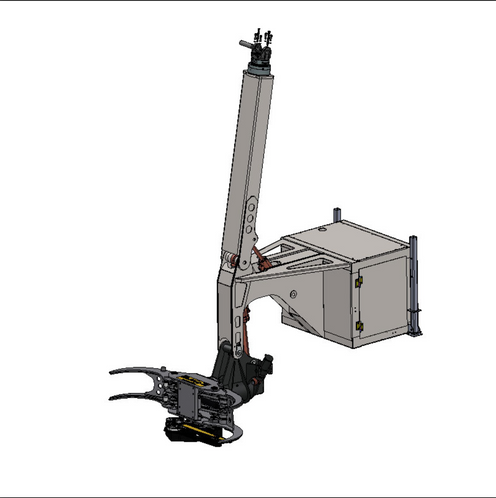

CRANE ATTACHMENT

POWERGRAB 1800

A self-powered and remote-controlled log grappler with a bar saw that can cut up to 20 inches in diameter.  Designed to be suspended from a mobile crane, so that the operator of the mobile crane can reach up and safely position the grappler around a section of a tree and severe that section. Then lift out of harm’s way and safely lower the section removed to the ground, without the need for a climber to hoisted up in the tree to choke and cut.


The PowerGrab 1800 can also be used to just grab a tree and then have it cut at ground level by a chainsaw operator, allowing a crane to again be utilized without manual choking. Design for backyard and other difficult trees, eliminating or reducing the need for bucket trucks and sky lifts while providing a much safer and more productive alternative.


OPTIONS

  • Suggested crane size 30-60 ton

POWERGRAB 1800

DUMPBUDDY

POWERGRAB 2400

MANBASKET

POWERGRAB 3600

ZEROTWIST

DEMOMASTER

POWERGRAB 2400

A self powered and remote controlled log grappler with a bar saw. Designed to be suspended from a mobile crane, so that the operator of the mobile crane can reach up and safely position the grappler around a section of a tree and severe that section. Then lift out of harms way and safely lower the section removed to the ground, without the need for a climber to hoisted up in the tree to choke and cut.


The PowerGrab 2400 can also be used to just grab a tree and then have it cut at ground level by a chainsaw operator, allowing a crane to again be utilized with out manuel choking. Design for backyard and other difficult trees, eliminating or reducing the need for bucket trucks and sky lifts while providing a much safer and more productive alternative.


OPTIONS

  • Suggested crane size 50+ ton
  • Custom trailer for quick loading and unloading
  • Dual axle 18’ deck to also accommodate ManBasketand ZeroTwist


POWERGRAB 3600

A self-powered and remote-controlled log grappler with a bar saw that can cut up to 36 inches in diameter. Designed to be suspended from a mobile crane, so that the operator of the mobile crane can reach up and safely position the grappler around a section of a tree and severe that section. Then lift out of harm’s way and safely lower the section removed to the ground, without the need for a climber to hoisted up in the tree to choke and cut.


The PowerGrab 3600 can also be used to just grab a tree and then have it cut at ground level by a chainsaw operator, allowing a crane to again be utilized without manual choking. Design for backyard and other difficult trees, eliminating or reducing the need for bucket trucks and sky lifts while providing a much safer and more productive alternative.


OPTIONS

  • Suggested crane size 80+ ton
  • Custom trailer for quick loading and unloading
  • Dual axle 18’ deck to also accommodate ManBasketand ZeroTwist

DUMPBUDDY

A self powered and remote controlled material container with dual, “Bombay style” doors in the bottom. Allowing a crane to transport material, such as aggregate, demo debris, snow, salt, grain or other types of similar material and self unload over a specific target.



One side drops 90 degrees to be able to transport equipment such as mini-excavators and skid steers. Tie down points to allow safe elevated unloading of a machine.


FEATURES

  • Built in charger hookup
  • Radio remote control
  • Top spreader boom fits in container for transport
  • Hardox AR steel, counter balance safety valve in each cylinder

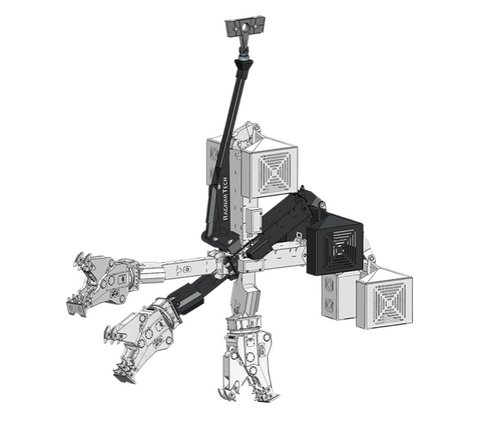

    DEMOMASTER

    The DemoMaster is design to control and power either a concrete cutter, a metal shear, or a hydraulic hammer, for the purpose of demolition of high-rise structures utilizing a mobile crane. Designed to carry up to a 5 ton implement. The unit is a fully self-powered devise that incorporates a 130hp CAT Diesel engine powering a 350 bar (5000psi) hydraulic system.


    All functions are controlled by a Scanreco radio remote control. The implement can operate horizontally or vertically or in angle in between. The main frame rotates 360 deg., and the implement rotates left and right while both the implement and motor assembly extends for quick positioning and to maintain desired level position. The implement mounting plate can be configured for quick disconnect to allow the operator to conveniently shift from a concrete cutter to a metal shear, new or existing.
    Easy to transport on a flatbed truck.


    OPTIONS

    • Camera monitoring
    • Zero twist blocks to control rotation of supporting crane
    • Customization to fit other uses
    • All types of implements available

      ZEROTWIST

      A cable block that prevents cable twisting when utilizing a device that is self turning while providing double lifting capacity.

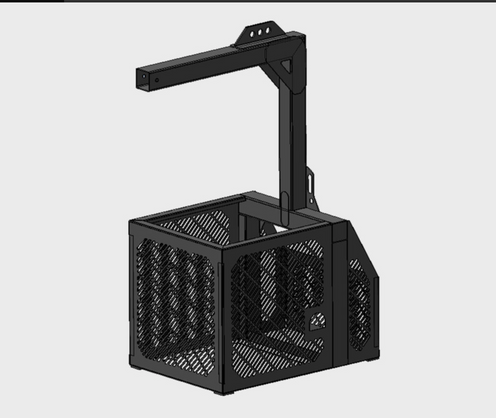

        MANBASKET

        A man basket, design to be suspended from a mobile crane. It can accommodate up to two people, rear section provides space for equipment storage. Harness hookup points, tool hookup in top tube, rated for weights up to 2500lbs.


        Ideal for inspection or trimming of trees independent or as a complement to the PowerGrab 2400. Or to any other applications when a safe man basket is required to hang off of a crane.


        OPTIONS

        • Accommodate up to two people
        • Equipment storage in rear section
